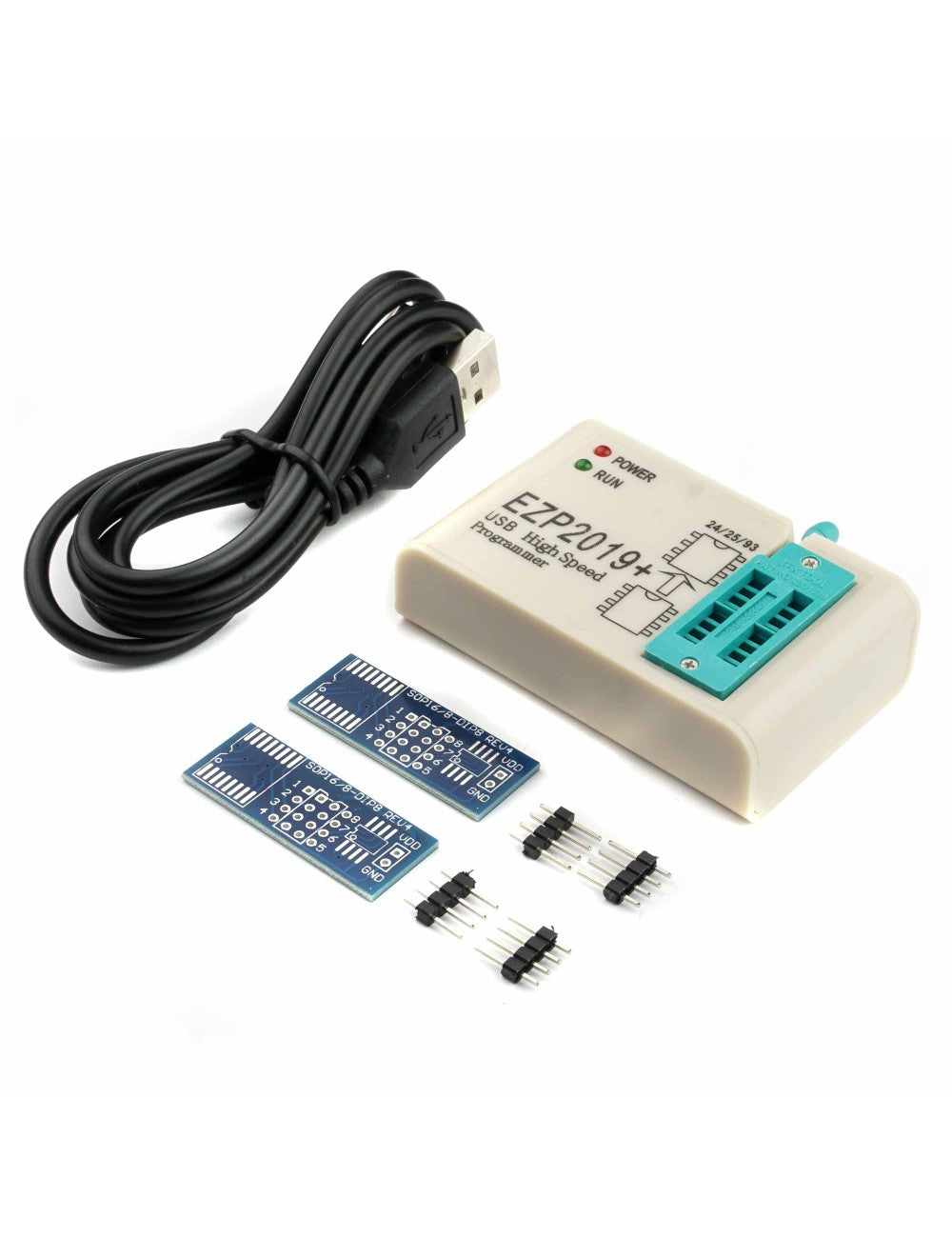

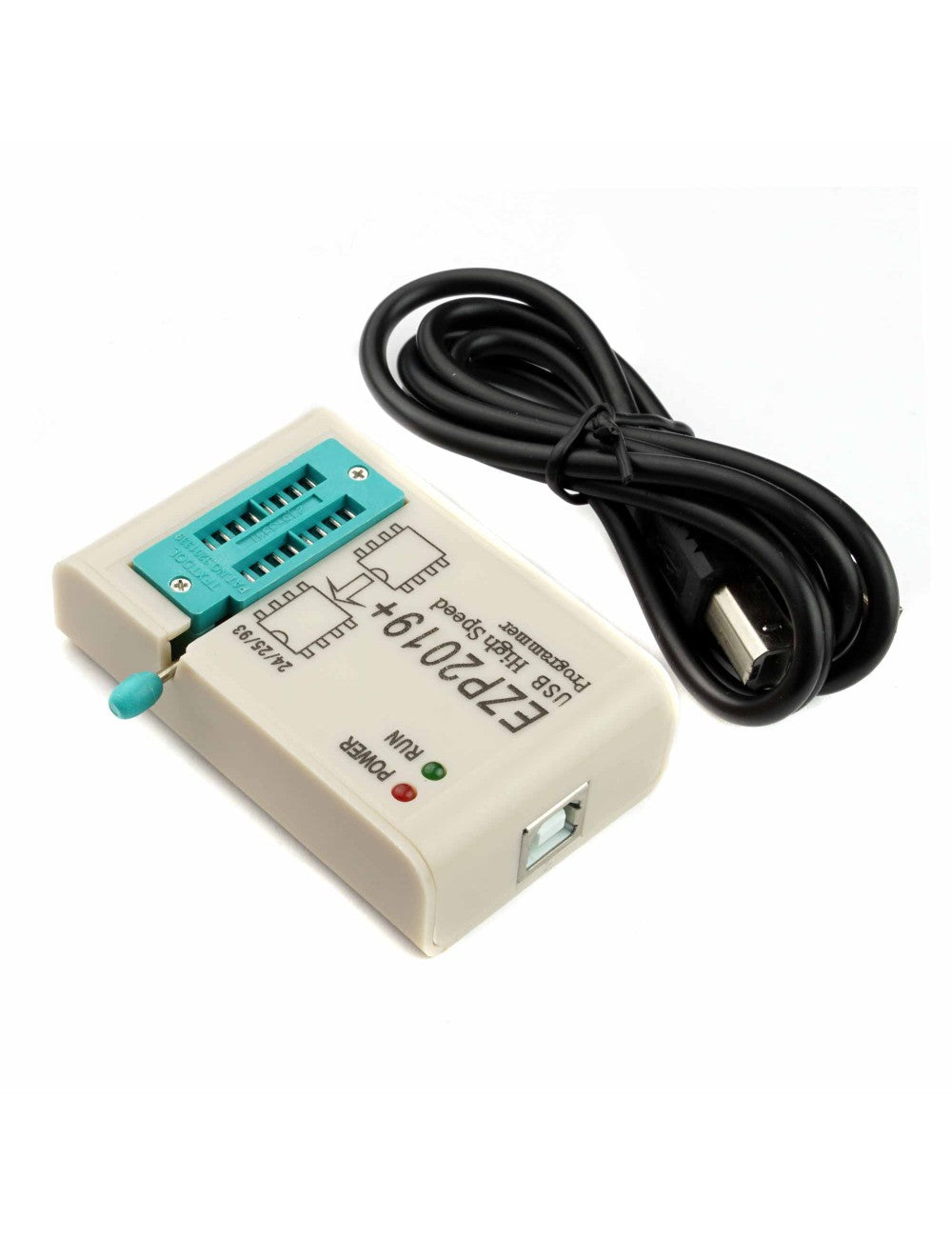

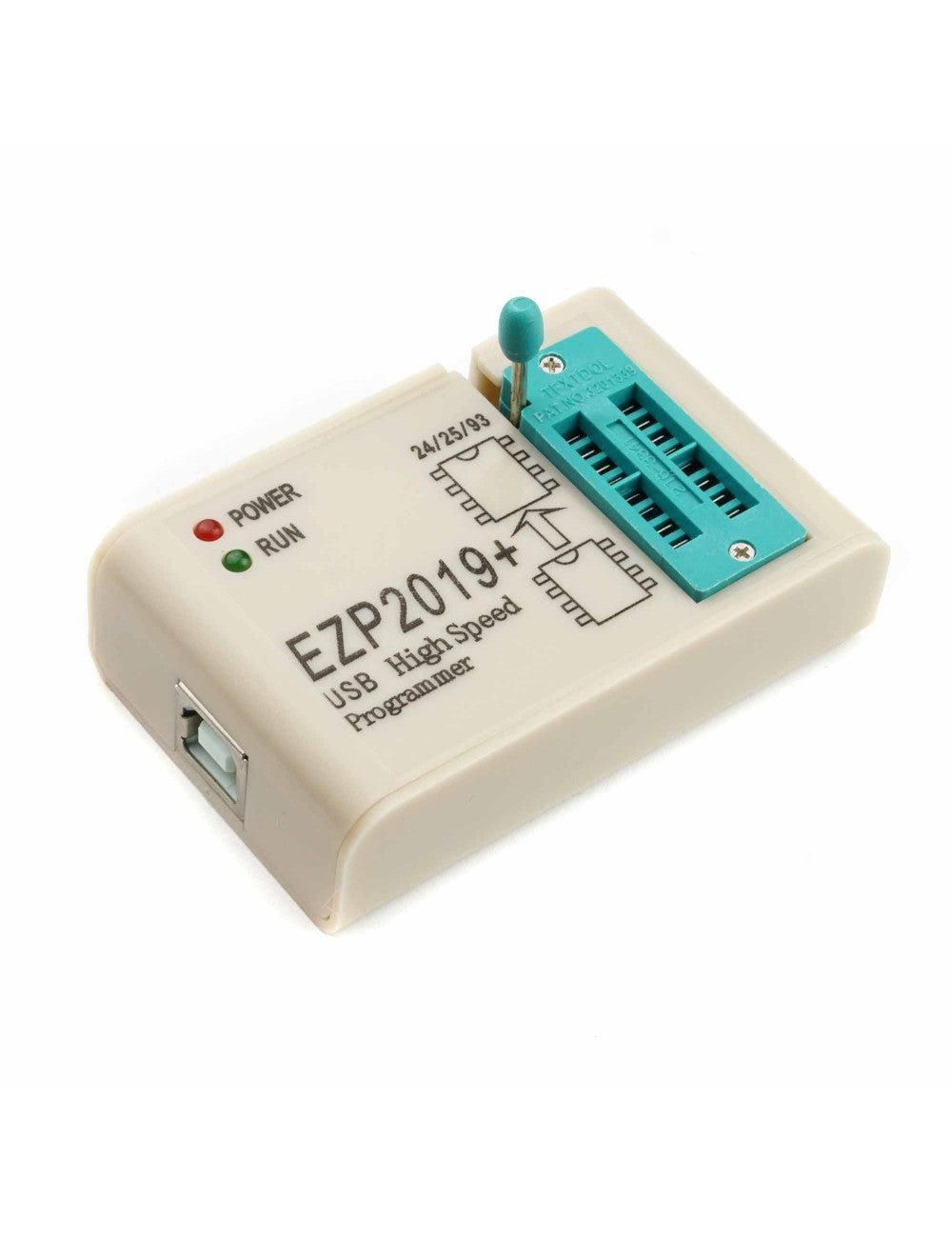

Програматор EZP2019+ BIOS FLASH EEPROM

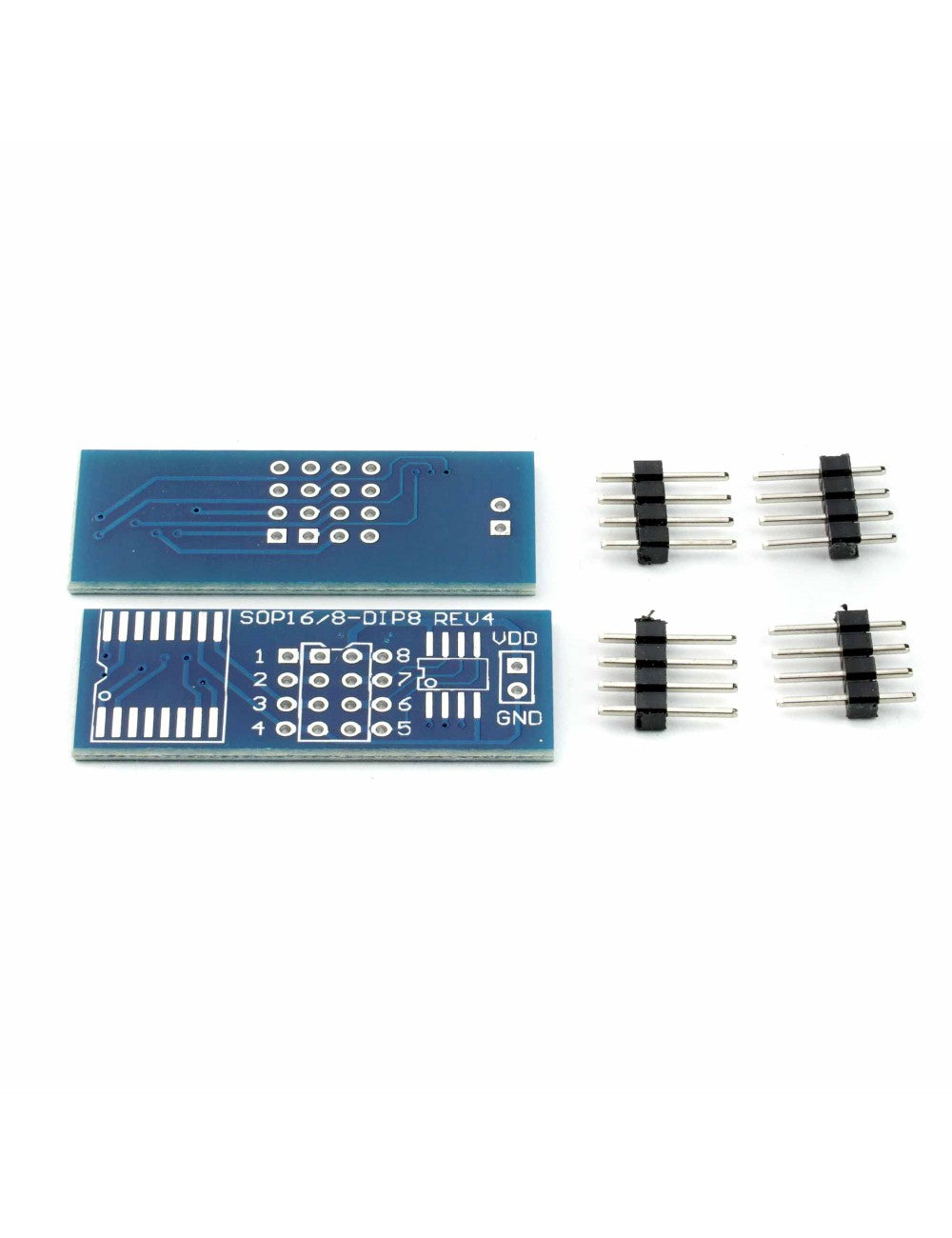

Програматорът EZP2019+ е новият наследник от серията EZP20xx. Характеризира се с поддръжка на по-голям брой системи, USB 2.0 интерфейс, висока скорост на запис и четене до 12Mbps - например паметта EN25T80 с капацитет 8-Mbit може да се чете за 3 секунди и да се записва за 9 секунди. Приложенията му включват: ремонт на домакински уреди, подходящ е за флашване на телевизори, DVD плейъри, компютърни дънни платки и чипове за масово съхранение на твърди дискове и други подобни устройства. Комплектът включва 2 преходника SO8/SO16.

Програматорът:

• разпознава типа свързана памет
• разпознава дали чипът е поставен правилно в гнездото
• автоматично избира захранващото напрежение
• има функции за копиране на паметта
• поддържа 25 FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM

Технически характеристики:

• Захранване, чрез USB
• Скорост на програмиране: 12Mbps
• Поддържа EEPROM, Flash I2C и SPI чипове
• Гнездо за свързващи системи: ZIP16
• Възможност за използване на допълнителни адаптери
• Работи добре със следните операционни системи: Windows XP, Windows Vista, Win7, WIN8, WIN10
• Включен USB кабел
• Размер: 65мм x 45мм x 18мм

Поддържани памети:



*** 25 SPI FLASH ***

AMIC: A25L05P, A25L512, A25L010, A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032

ATMEL: AT25F512, AT25F512A, AT25F512B, AT25F1024, AT25F1024A, AT25FS010, AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004, AT26DF081A, AT25DF161, AT26DF161, AT26DF161A, AT25DF321, AT25DF321A, AT26DF321, AT25DF641

EON: EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25F20, EN25F20, EN25F20, EN25Q80, EN25T80, EN25B16, EN25B16T, EN25D16, EN25F16, EN25Q16, EN25T16, EN25B32, EN25B32T, EN25F32, EN25P32, EN25Q32, EN25B64, EN25B64T, EN25F64, EN25P64, EN25Q64, EN25F128 ES25P10, ES25P20, ES25M40, ES25M40A, ES25P40, ES25M80, ES25M80A, ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32

ESMT: F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A, F25L16PA, F25L32PA, F25L32QA

MXIC: MX25L512, MX25V512, MX25L1005, MX25L2005, MX25L4005A, MX25V4005, MX25L8005, MX25V8005, MX25L1605D, MX25L1635D, MX25L3205D, MX25L3225D, MX25L3235D, MX25L3237D, MX25L6405D, MX25L12805D

NexFlash: NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32

PMC: PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B, PM25LV016B

SAIFUN: SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320

SPANSION: S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A

SST: SST25VF512, SST25VF512A, SST25VF010, SST25VF010A, SST25VF020, SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B, SST25VF064C

ST: M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25PE40, M25P80, The M25PE80, M25PX80, M25P16, M25PE16 , M25PX16, M25P32, M25PX32, M25P64, M25PX64, M25P128

WINBOND:W25P10, W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20, W25X25, W40, W40X25A, W25X20L, W40 W25X80AL, W25X80L, W25P16, W25X16, W25P32, W25X32, W25X64

*** 24 EEPROM ***

ATMEL:AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C24, ATC64, AT24C6464, AT24C16B, AT24C24, AT24C32, AT24C64 AT24C256, AT24C256A, AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B

CATALYST:CAT24C01, CAT24WC01, CAT24C02, CAT24WC02, CAT24C04, CAT24WC04, CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24WC64, CAT24C24 CAT, CAT24C24, CAT24C24, CAT24C128, CAT24C

COMMON: 24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V, 24C04 3V, 24C04 5V, 24C08 3V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V, 24C64 5, 24C128 3V, 24C128 5V, 24C256 3V, 24C256 5V, 24C512 3V, 24C512 5V, 24C1024 3V, 24C1024 5V

FAIRCHILD: FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L, FM24C32L, FM24C64L, FM24C128L, FM24C512L, FM24C512L, FM24C256L,

HOLTEK:HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04, HT24C08, HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24LC64, HT24C128 HT24C256, HT24 256, HT24C128, HT24

ISSI: IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024

MICROCHIP: 24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02, 24LC02B, 24AA024, 24AA025, 24AA04, 24C02C, 24LC024, 24LC025, 24LC04B, 24AA08, 24LC08B, 24LC16, 24LC16B, 24LC16B 24FC64, 24LC64, 24AA128, 24FC128, 24LC128, 24AA256, 24FC256, 24LC256, 24AA512, 24FC512, 24LC512, 24AA1024

NSC: NSC24C02, NSC24C02L, NSC24C64 RAMTRON: FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512

ROHM: BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04, BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32, BR24C64, BR24L64

ST: ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64 XICOR: X24C01, X24C02, X24C04, X24C08, X24C16

*** 93 EEPROM ***

AKM: AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV

ATC: ATC93C46, ATC93LC46 (16bit), ATC93LC46 (16bit) -SOP8, ATC93LC46 (8bit), ATC93LC46 (8bit) -SOP8, ATC93C56, ATC93LC56 (16bit), ATC93LC56 (16bit) -SOP8, ATC93LC56 (8bit), ATC93 ) -SOP8, ATC93C66, ATC93LC66 (16bit), ATC93LC66 (16bit) -SOP8, ATC93LC66 (8bit), ATC93LC66 (8bit) - SOP8

ATMEL: AT93C46 (16bit), AT93C46 (16bit) -SOP8, AT93C46 (8bit), AT93C46 (8bit) -SOP8, AT93C46A, AT93C56 (16bit), AT93C56 (16bit) -SOP8, AT93C56 (8bit), AT93C56 (8bit)- SOP8, AT93C57 (16bit), AT93C57 (16bit) -SOP8, AT93C57 (8bit), AT93C57 (8bit) -SOP8, AT93C66 (16bit), AT93C66 (16bit) -SOP8, AT93C66 (8bit), AT93C66 (8bit) -SOP8, AT93C86 (16bit), AT93C86 (16bit) - SOP8, AT93C86 (8bit), AT93C86 (8bit) -SOP8

CATALYST: CAT93C46 (16bit), CAT93C46 (8bit), CAT93C46A, CAT93C46I, CAT93C56 (16bit), CAT93C56 (8bit), CAT93C56A, CAT93C57 (16bit), CAT93C57 (16bit) -SOP8, CAT93Cbit (9366) (1666) CAT93C66A, CAT93C86 (16bit), CAT93C86 (8bit)

COMMON: 93C46 (16bit), 93C46 (8bit), 93C56 (16bit), 93C56 (8bit), 93C66 (16bit), 93C66 (8bit), 93C86 (16bit), 93C86 (8bit)

EXEL: XL93C06, XL93C46, XL93CS46, XL93LC46, XL93C56, XL93LC56, XL93C66, XL93LC66

FAIRCHILD: FM93C06AM8 (16bit), FM93C06AM8 (8bit), FM93C06M8, FM93C06N, FM93C46AM8 (16bit), FM93C46AM8 (8bit), FM93C46AN (16bit), FM93C46AN (8bit), FM93C16 (16bit), FM93CS1616 (16bit) , FM93CS56 (16bit), FM93C66AM8 (16bit), FM93C66AM8 (8bit), FM93C66AN (16bit), FM93C66AN (8bit), FM93C66B, FM93C66M8 (16bit), FM93C66MT8 (16bit), FM93C16AM (93bit), FM93C16N (16bit) 16bit), FM93C86AM8 (8bit), FM93C86AN (16bit), FM93C86AN (8bit)

HOLTEK: HT93LC46A (16bit), HT93LC46A (8bit), HT93LC56A (16bit), HT93LC56A (8bit), HT93LC66A (16bit), HT93LC66A (8bit)

ICT: ICT93C46 (16bit), ICT93C46 (8bit), ICT93C56 (16bit), ICT93C56 (8bit), ICT93C66 (16bit), ICT93C66 (8bit) ISSI: IS93C46 (16bit), IS93C56 (16bit), IS93C66 (16bit)

MICROCHIP: 93C06 (16bit), 93C06 (16bit) -SOP8, 93AA46 (16bit), 93AA46 (8bit), 93AA46 (8bit) - SOP8, 93C46 (16bit), 93C46 (16bit) -SOP8, 93C46A, 93C46B, 93LC46 (16bit), 93LC46 (16bit) -SOP8, 93LC46 (8bit), 93LC46 (8bit) -SOP8, 93LC46A, 93LC46B, 93LC46B-SOP8, 93AA56 (16bit), 93AA56 (8bit), 93AA56 (8bit) -SOP8, 93C56 (16bit), 93C56 (16bit) -SOP8, 93C56 (8bit), 93C56 (8bit) -SOP8, 93C56A, 93C56A-SOP8, 93C56B, 93C56B-SOP8, 93LC56 (16bit), 93LC56 (16bit) -SOP8, 93LC56 (8bit), 93LC56 (8bit) ) -SOP8, 93LC56A, 93LC56B, 93LC56B-SOP8, 93AA66 (16bit), 93AA66 (8bit), 93AA66 (8bit) -SOP8, 93C66 (16bit), 93C66 (16bit) -SOP8, 93C66 (8bit), 93C66 (8bit) -SOP8, 93C66A, 93C66A-SOP8, 93C66B, 93C66B-SOP8, 93LC66 (16bit), 93LC66 (16bit) -SOP8, 93LC66 (8bit), 93LC66 (8bit) -SOP8, 93LC66A, 93LC66B, 93LC66B-SOP8, 93AA76 (16bit ), 93AA76 (8bit), 93C76 (16bit), 93C76 (8bit), 93LC76 (16bit), 93LC76 (8bit), 93LC76A, 93LC76B, 93AA86 (16bit),93AA86 (8bit), 93C86 (16bit), 93C86 (8bit), 93LC86 (16bit), 93LC86 (8bit), 93LC86A, 93LC86B

NSC: NSC93C06, NSC93C06-SOP8, NSC93CS06, NSC93C46, NSC93CS46, NSC93C56, NSC93CS56, NSC93S56, NSC93C66, NSC93CS66, NSC93C86

ROHM: BR93LC46, BR93LC46RF, BR93LC56, BR93LC56RF, BR93LC66, BR93LC66RF

ST: ST93C06, M93S46, M93S46-SOP8, M93S46-T8, M93S46R, M93S46R-SOP8, M93S46W, M93S46W-SOP8, ST93C46, M93S56, M93S56-SOP8, M93S56R, M93S56R-SOP8, M93S56C, M93S56W, M93S66-SOP8, M93S66R, M93S66R-SOP8, M93S66W, M93S66W-SOP8, ST93C66

*** 25 EEPROM ***

ATMEL: AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256, AT25512

CATALYST: CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U, CAT25C02P, CAT25C02S, CAT25C02U, CAT25C03P, CAT25C03S, CAT25C03U, CAT25C04P, CAT25C04S, CAT25C04U, CAT25C05P, CAT25C05S, CAT25C05U, CAT25C08P, CAT25C08S, CAT25C08U, CAT25C09P, CAT25C09S, CAT25C09U, CAT25C16P, CAT25C16S, CAT25C16U, CAT25C17P, CAT25C17S, CAT25C17U, CAT25C32P, CAT25C32S, CAT25C33P, CAT25C33S, CAT25C64P, CAT25C64S, CAT25C65P, CAT25C65S, CAT25C128P, CAT25C128S, CAT25C128S

COMMON: 25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256, 25512

MICROCHIP: 25AA040, 25C040, 25LC040, 25AA080, 25C080, 25LC080, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25LC320, 25AA640, 25C640, 25LC640

RAMTRON: FM25C160, FM25640, FM25CL64

ST: ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04, ST25C08, ST25W08, ST25C16, ST25W16

TI: TI2532, TI2532A, TI2564

XICOR: XC25010, XC25020, XC25040, XC25080, XC25160, XC25320, XC25640, XC25128, XC25256, XC25512
